We are a high-tech enterprise integrating r&d, manufacturing, technical service and sales of hydrogen energy equipment.
We specialize in producing all kinds of energy machinery, mainly HHO generator, carbon cleaning machin, HHO Welding Machine, carbon steel cutting machine, etc.
-

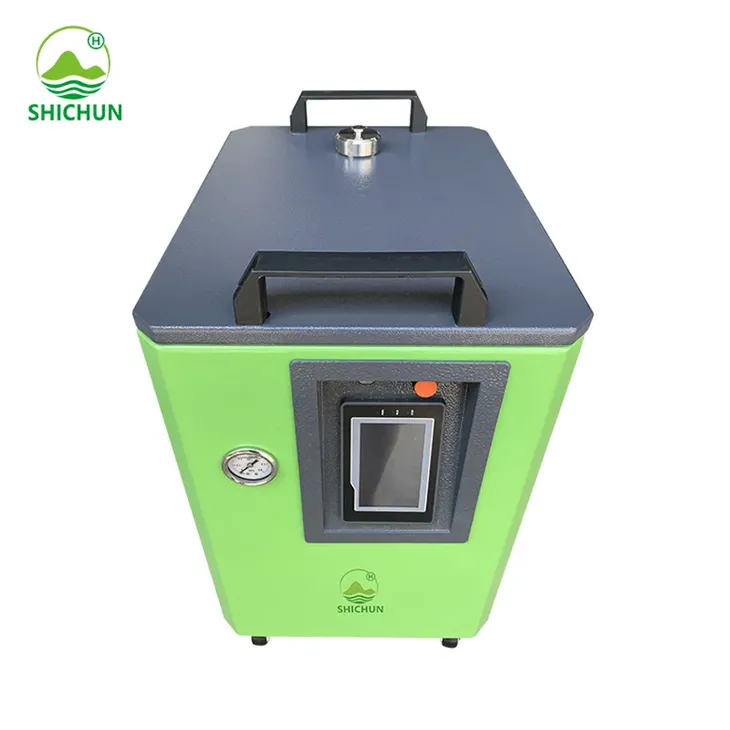

![SCH300 Dedicated To Oxy-hydrogen Kit Machine]()
SCH300 Dedicated To Oxy-hydrogen Kit MachineThe hydrogen - oxygen welding machine uses water as a medium. With an electric current, water decomposes electrochemically into hydrogen (fuel) and oxygen (combustion - supporter) via electrolysis. Aread more -

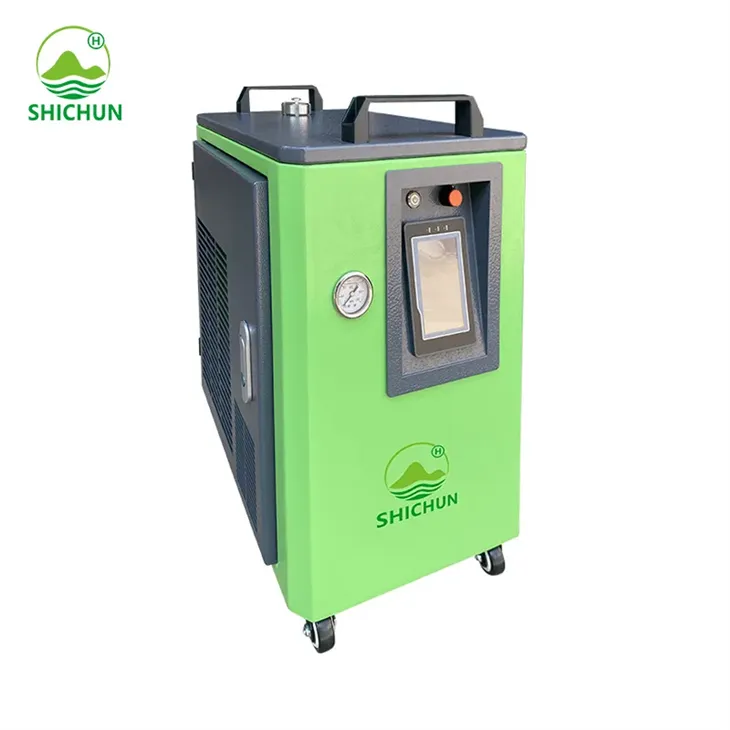

![SCH1000 Professional Oxyhydrogen Fuel Saver Kit]()
SCH1000 Professional Oxyhydrogen Fuel Saver KitThe thickness of the flame of the hydrogen and oxygen water welder can be controlled by changing the nozzle of the front end of the oxyhydrogen flame gun.read more
Specification
|
Name: |
Hydrogen - oxygen welding machine |
|
Model NO.: |
SCH300 |
|
Input Voltage： |
220V/110V |
|
Working current (A) |
40 |
|
Working Gas Pressure (Mpa)： |
0.05-0.2 |
|
Relative Humidity (%)： |
90＞ |
|
Rated Gas Production (L/h)： |
300 ±10% |
|
Water Consumption： |
0.165 |
|
Power Consumption ： |
1 |
|
Water Feed： |
Manual/Automatic |
|
Cooling Mode： |
Air Cooling |
|
The Insulation Level: |
F |
|
Power Supply Protection Grade: |
IP21S |
|
Working Medium: |
Purified water or distilled water |
|
Working Method: |
Continuous |
|
Enviroment Temperature (℃): |
0~40 |
Benefits of Oxy-Hydrogen Generator
Safety: Oxyhydrogen generators produce a mixture of hydrogen and oxygen gases through electrolysis of water. Unlike traditional oxyacetylene or other fuel gas systems, oxyhydrogen generators do not require flammable gases, making them safer to use.
Environmentally friendly: Oxyhydrogen generators produce a clean and green flame. The combustion of hydrogen and oxygen generates only water vapor as a byproduct, eliminating harmful emissions and reducing the carbon footprint.
Precise heat control: Oxyhydrogen flames provide precise heat control, making them suitable for delicate wax mold repair. The flame temperature can be easily adjusted, allowing artisans to apply the right amount of heat without damaging the surrounding areas of the mold.
Clean and residue-free: The combustion of oxyhydrogen gas produces a clean flame that doesn't leave behind any soot or residue. This is particularly advantageous in wax mold repair, as it helps maintain the integrity and cleanliness of the mold surface.
Cost-effective: Oxyhydrogen generators utilize water and electricity as their fuel source, which are typically more affordable compared to traditional fuel gases like acetylene. This makes oxyhydrogen generators a cost-effective option for wax mold repairing, especially in high-volume production environments.
Versatility: Oxyhydrogen generators can be used for various applications beyond wax mold repairing, such as jewelry making, glassworking, brazing, soldering, and more. This versatility makes them a valuable tool in different industries.
Ease of use: Oxyhydrogen generators are relatively easy to operate and maintain. They typically have user-friendly controls and require minimal setup time. This simplicity makes them accessible to artisans of different skill levels.
Portability: Oxyhydrogen generators are often compact and lightweight, allowing for easy portability. This is particularly beneficial for on-site repairs or if the generator needs to be moved between workstations.
Working Of Oxy-Hydrogen Generator
Electrolysis:
Electrolysis is a process that involves passing an electric current through water (H2O), causing it to split into its constituent elements: hydrogen (H2) and oxygen (O2). This reaction occurs at the electrodes immersed in the water.
Electrolysis Setup: A typical electrolysis setup consists of an electrolyte solution (usually water) and two electrodes (typically made of platinum or other conductive materials). These electrodes are connected to an external power source, such as a battery or a direct current (DC) power supply.
Electrolysis Process: When an electric current is applied to the electrodes, water molecules near the positive electrode (anode) lose electrons and form oxygen gas (O2). Meanwhile, water molecules near the negative electrode (cathode) gain electrons and form hydrogen gas (H2).
Gas Collection: The hydrogen gas produced at the cathode is collected and stored for use in various applications. At the same time, the oxygen gas produced at the anode can also be collected or released into the atmosphere.
Purity Control: To ensure the purity of the hydrogen gas produced, additional purification steps may be required to remove any impurities or traces of oxygen.
Chemical Reactions:
Hydrogen can also be generated through chemical reactions, such as steam reforming or biomass gasification. These processes involve reacting hydrocarbons or organic materials with steam or oxygen to produce hydrogen gas as a byproduct.
Steam Reforming: Steam reforming is a common method used to produce hydrogen from natural gas or methane. In this process, methane (CH4) reacts with steam (H2O) in the presence of a catalyst to produce hydrogen gas (H2) and carbon monoxide (CO).
Biomass Gasification: Biomass gasification involves heating organic materials such as wood, agricultural residues, or municipal solid waste in a low-oxygen environment to produce a synthesis gas (syngas) containing hydrogen, carbon monoxide, and other gases. The syngas can then be separated and purified to obtain hydrogen gas.
Other Chemical Processes: Other chemical processes, such as water-gas shift reactions or coal gasification, can also be used to produce hydrogen from a variety of feedstocks.
Marine Transportation:
From boats to submarines, hydrogen fuel cells provide clean and efficient power solutions, enabling emission-free cruising and long-range operations.
Warehouse Logistics:
Clean trucks and forklifts enhance productivity while reducing carbon footprint.
Public Transport:
Hydrogen buses in Europe and US states improve air quality and reduce emissions.
Rail Transport:
Hydrogen trains in Germany, the UK, and Japan offer sustainable alternatives for rail travel.
Backup Power:
Stationary fuel cells ensure continuous uptime for critical facilities like hospitals and data centers.
Mobile Power Generation:
Hydrogen fuel cells power generators for remote locations and space exploration.
Uncrewed Aerial Vehicles:
Hydrogen-powered UAVs offer extended range and higher energy efficiency for various applications.
Additional Information
|
Shipping |
We offer various shipping methods, including sea freight, air freight, and express delivery, depending on the order size and destination. |
|
Terms Of Payment |
We usually accept T/T, L/C, Paypal, Credit card, etc. If you prefer other payments terms, please feel free to discuss with us. |
Certificate
FAQ
As one of the leading oxy-hydrogen generator manufacturers and suppliers in China, we warmly welcome you to wholesale cheap oxy-hydrogen generator from our factory. All customized products are with high quality and competitive price.
Low Consumption HHO Fuel Saving Kit, Brown Gas Carbon Truck Engine Decarbonizing Machine, Brown Gas Generator Boiler Combustion Supporting Machine
