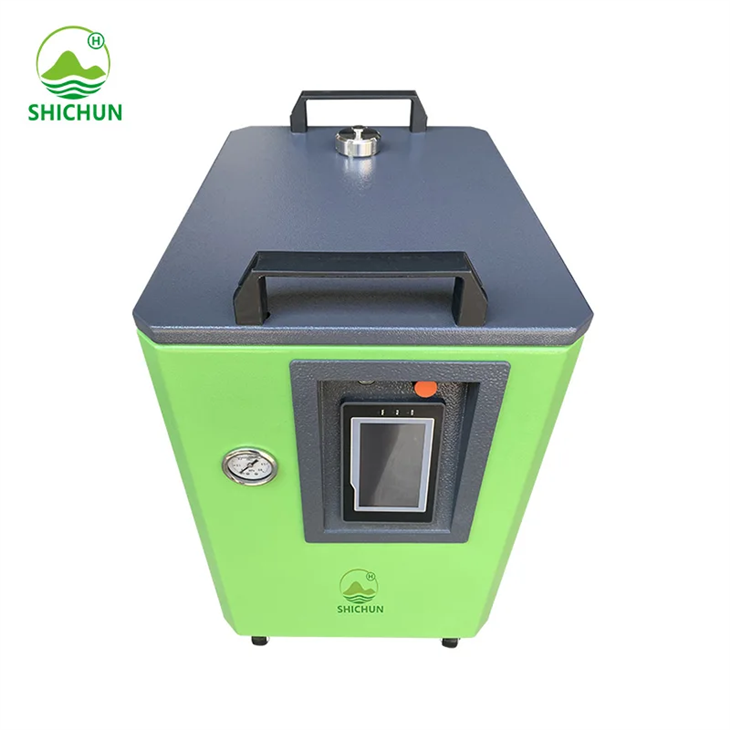

SCH2000 HHO Silver Welding Machine
1.Introduction：
High quality portable glass edge polishing machine
HHO generator?consumes water and electricity, electrolyze water into hydrogen gas and oxygen gas. Due to high-efficiency and high temperature of mixed hho gas, it is widely used in welding, cutting, polishing, heating and carbon steel cutting industry etc. UseUse H2 and O2 as source of flame to replace LPG, propane, acetylene fuel or natural gas or other fuel.
Multi-functions application of Oxyhydrogen Generator hho gas generator:
(1) Jewelry Industry:
For welding kinds of chain and string which are made of platinum, gold, silver, copper, stainless steel, etc.
For mending tiny sand holes on jewelry casting.For jewelry repairing (reforming, casting, welding).
(2) Electronic Industry:
For welding enameled wire,?computer wire peeling,?LED wafer, flame-treating circuit board,thermocouple andplatinum resistor leading wires.
(3) Medical Industry:
For denture welding.
For welding metal fittings and mending sand holes in dentistry.
No-carbon flame disinfection and glass seal.
(4) Laboratory:
ForWelding of laboratory teaching, providing convenient, safe and clean oxy-hydrogen flame.
(5) Others:
Instrument welding,?Air-condition copper pipe welding,?Automobile exhaust pipe welding,Fishhook welding,Storage battery tinplate welding,lighting hardware weldingand etc.
2.Components :
- Electrolytic Cell: The machine's core, containing an electrolyte solution. Electrodes decompose water into hydrogen and oxygen via electrolysis under direct - current supply.
- Power Supply System: Supplies stable direct current to the electrolytic cell for smooth electrolysis. It features over - current and over - voltage protection for equipment safety.
- Gas Separation and Purification Unit: Separates and purifies the mixed hydrogen and oxygen from electrolysis, removing moisture and electrolyte particles to obtain pure gases.
- Gas Storage and Conveyance System: Consisting of tanks and pipelines, it temporarily stores and transports purified gases to the welding torch. Some models have flow control for precise regulation.
- Welding Torch: Also called the hydrogen - oxygen flame torch, it mixes and ignites gases to generate a high - temperature welding flame, designed for diverse welding needs.
- Control System: Monitors and regulates the machine's operation, including cell voltage, current, gas flow, and pressure. It enables automation functions like start - up, shutdown, and fault alarms for user convenience.
- Enclosure and Frame: Protects internal components, supports the structure, and allows for easy mobility and installation. Usually made of metal or high - strength plastic, it offers good insulation and protection.
3.Working Principle：
The hydrogen - oxygen welding machine uses water (HHO) as raw material. Electrolysis decomposes water into oxygen and hydrogen, with hydrogen as fuel and oxygen as the combustion - supporting agent. Igniting the two gases forms a hydrogen - oxygen flame, turning water into fire. It's a clean, renewable energy source replacing acetylene, propane, and LPG.
This welding method meets enameled wire welding standards well, ensuring no false soldering, a small heat - affected zone, and minimal resistance deviation. It only consumes water and electricity. The equipment is lightweight, easy to move, install, and maintain, needing no dedicated space. It offers long - term benefits at low cost.
4.Usage Effect：
- The equipment relies solely on water and electricity, significantly reducing energy consumption compared to traditional alternatives.
- Long - lasting Durability: With an integrated electrolyzer design, the equipment has an extended service life of up to 10 years.
- Safe and Convenient: It is designed for immediate use, eliminating potential safety risks typically associated with similar equipment.
- User - friendly Operation: The operation process is straightforward and safe, enabling users with varying levels of expertise to perform welding tasks with ease.
- Labor - saving Design: There is no requirement to remove the external protective paint of enameled wires, thus reducing manual labor and enhancing efficiency
5.Advantage：
Cost - Effective: Oxyhydrogen generators offer substantial savings, reducing costs by 60% compared to acetylene and 40% compared to propane. Their fuel source, consisting solely of water and minimal electricity, provides long - term economic benefits.
Precision Welding: With a concentrated flame, these generators enable precise welding, making them ideal for precious metals like jewelry. This precision minimizes metal loss during the welding process.
Rapid Welding: Boasting a high - calorific value of 34,000 Kcal/kg and a flame temperature reaching 2800°C, oxyhydrogen flames can melt weld spots within one second, significantly enhancing welding efficiency.
Clean Combustion: The oxyhydrogen flame produces no carbides, ensuring post - welding surfaces remain free of black spots. This clean combustion also preserves the workpiece's rigidity and flexibility, maintaining the aesthetic appeal of jewelry.
Safe and Convenient: Operating without gas cylinders, oxyhydrogen generators produce gas on - demand, eliminating explosion risks. Automatic on/off functions based on gas pressure, adjustable gas output, and straightforward operation enhance user safety and convenience.
Environmentally Friendly: Using only water and electricity as fuel, oxyhydrogen generators emit steam as the sole by - product, posing no harm to the environment or jewelry welding operators.
6.Parameter：
|
Name: |
Hydrogen - oxygen welding machine |
|
Model NO.: |
SCH2000 |
|
Input Voltage： |
220V/110V |
|
Working current (A) |
160 |
|
Working Gas Pressure (Mpa)： |
0.05-0.2 |
|
Relative Humidity (%)： |
90＞ |
|
Rated Gas Production (L/h)： |
2000 ±10% |
|
Water Consumption： |
1.1 |
| Power Consumption ： | 7 |
|
Water Feed： |
Manual/Automatic |
|
Cooling Mode： |
Air Cooling |
|
The Insulation Level: |
F |
|
Power Supply Protection Grade: |
IP21S |
|
Working Medium: |
Purified water or distilled water |
|
Working Method: |
Continuous |
|
Enviroment Temperature (℃): |
0~40 |
7.Our Company：
Shichun Hydrogen Energy is a high - tech innovator, focusing on zero - pollution, low - consumption, and high - efficiency hydrogen energy technologies. The company specializes in researching, developing, manufacturing, and selling various products, including hydrogen energy equipment, environmental protection systems, laser devices, welding and cutting machinery, vehicle maintenance tools, inverters, and hydrogen - oxygen ventilators.
Its advanced equipment is widely used across multiple sectors. In energy, it optimizes boiler combustion and promotes energy - saving and environmental protection. In the automotive industry, it improves vehicle power. Additionally, it is crucial for waste incineration, steel cutting and welding, pharmaceutical sealing, and hydrogen - vehicle development, highlighting its role in sustainable technological progress.
8.Q&A:
Q: Is it all right to make customer's own brand name?
A: Sure, OEM / ODM is available.
Q: Are you a manufactuer or trading company?
A: we're factory locate in Changsha, Hunan Province, China.
Q: How can I get a quote?
A: Just send us product model, MOQ, your address and contact information.
Q: How can I get a sample to check your quality?
A: Just need sample cost, We also provide free samples in special conditions.
Q: How long can I expect to get the sample?
A: It depends on parts itself, generally about 30 days.
Q: Packaging & Shipping:
A: Carton for express delivery and wooden cases are used for sea transportation.
Q: What are your main products?
A: Professional Manufacturer of HHO carbon cleaning machine, HHO boiler combustion supporting machine, HHO power device, HHO Welding Machine and HHO Cutting Machine.
